WE CAN DO
Innovative PCB Solutions
With many years continuous innovation and improvement based on customers' need, ZDCL has been becoming a one of the most reliable printed circuit board suppliers
| Specifications | Standard Specs | Custom Specs |
|---|---|---|
| Layer Count | 2 - 40 Layers | 2 - 40 Layers |
| Liminate | FR4(Tg140, TG150, Tg170, Tg250)/CTI≥2600/HF/High speed/IMS/Rogers/High Frequency/PI | FR4(Tg140, TG150, Tg170, Tg250)/HF/Heavy Copper/IMS |
| Max Final Size | Double:630 mm x 1200 mm Multilayer:550 mm x 650 mm | Double:630 mm x 710 mm Multilayer:550 mm x 650 mm |
| Finished Thk | 0.2 mm - 6.0 mm | 0.6 mm - 3.2 mm |
| Copper Thk | 6 OZ(Inner) to 10 OZ(Outer) | 3 OZ(Inner) to 05 OZ(Outer) |
| Min drill size | 0.15 mm | 0.20 mm |
| Aspect Ratio | 16:1 | 10:1 |
| Min Conductor W/S | 2.5 mil/2.5 mil | 3.0 mil/3.0 mil |
| Min SM dam | 2 mil(GN), 4mil(others) | 4 mil(GN), 6mil(others) |
| Plug Hole Dia | 0.2 mm - 0.6 mm | 2 - 40 Layers |
| Layer Count | 2 - 36 Layers | 2 - 40 Layers |
| Impedence tolerance | +/- 6% | +/- 10% |
| SM Color | GN/WT/BK/RD/YL/BL/BN | GN/WT/BK/BN/Others on request |
| Finishing | OSP/HASL/HASL LF/ENIG/Gold Finger/Ag/ISn/Dual Finishing | OSP/HASL/HASL LF/ENIG/Gold Finger/Ag/ISn/Dual Finishing |
WE CAN DO
Quick Turn Capabilities
Our 24-hour China based facilities and the latest PCB manufacturing equipment allow us to provide fast and flexible turn times to meet our customer's tight project deadlines.
Same Day Turns
With ZDCL's Super Fast Same Day Turn Service, you can be sure your printed circuit boards will be manufactured with the highest quality standards and will finish your order.
Submit your 2 layer PCB order by 9:30AM CST and we will ship the printed circuit boards that evening. Your order will finish the following morning.
Weekend Wonder
Submit your WEEKEND WONDER PCB order on Friday (Multilayer by Noon and 2-layer designs by 3:00 pm. CST) and it will finish the next day.
WE CAN DO
R&D
Assisting customers to succeed based on our talents and technology, with high-quality products and services.
R&D team
PPE Team: 96
Dev Team: 20
Sample Team: 08
Expert Workstation
The First/Only PCB Academician Workstation
Professor/Ph Dsupervisor: 9
Doctor/Master: 33
Lab: 5/Key Lab Enuipments: 20
WE CAN DO
ENGINEERING SUPPOTRS
Sufficient, Fast, Genuine, Perfect
Personnel Protection
Audit: 8
CAM: 40
MI: 20
Full Set: 30
oversea: 10
QAE: 6
24-hour Service
24 hours to complete the pre-trial
Urgent order within 8 hours to Put into production
24 hours in 3 shifts
Genuine Software
EMS
In CAN
Audit Mechanism
Review gerber
Handle gerber
QAE Audit
EQ
QAE Re
Audit
WE CAN DO
EQUIPMENT SHOW
Automatic Board Cutting*1set
I/L Automatic Exposuring*1set
High Temp. Pressing*2sets（9 sets TT

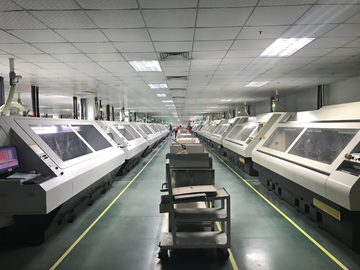

Drilling*174sets

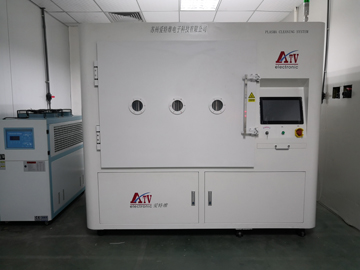

Plasma*1set

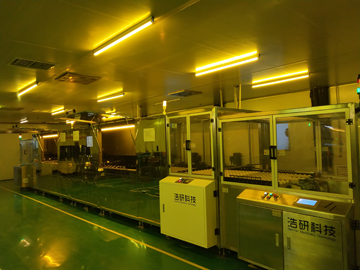

DF LDI*4sets
Vacuum Etching*1set（5 in TTL）

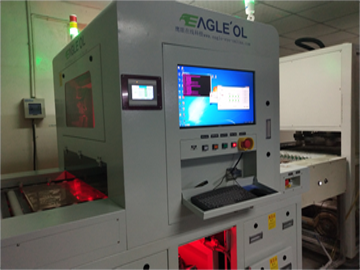

Online AOI*4sets
